TRIAC DIMMABLE SELF SLD75-24VL-E 24.0 V / DC / 0-3.1A 3.1A 75W IP20 DIMMABLE

TRIAC DIMMABLE SELF SLD75-24VL-E 24.0 V / DC / 0-3.1A 3.1A 75W IP20 DIMMABLE

SKU: 14848
Category: 24 Volt
Manufacturers: Self Electronics

64,60 €

incl. 19% VAT , plus (Standard)

Description

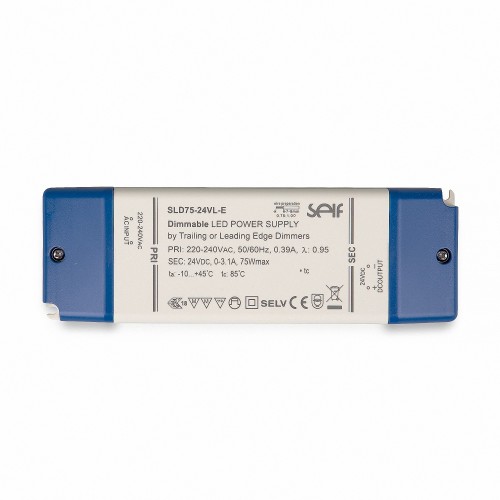

Product name : Self Electronics SLD75-24VL-E
Self Electronics has developed the 75W triac dimmable power supplies especially for LED applications in constant voltage operation without a separate control line for dimming. We have the types SLD75-12VL-E and SLD75-24VL-E in our program for you, which represent a suitable solution, especially for retrofitting and conversions, e.g. B. for LED strips. Self's LED power supplies have a SELV-compliant constant voltage output of 12V or 24V and a dimming range of 5-100%. They correspond to protection class II and are protected against interruption, short circuit, overload and overheating. An automatic restart occurs after the cause of the error has been rectified. The MM mark allows mounting on materials with unknown flammability properties, and a clamp connection also enables quick installation. With an efficiency of 86.5% (at full load), Self's LED power supplies have an operating life of 30,000 hours at a case temperature of 45°C. They can also be used as independent control gear outside of luminaires.
Features: independent control gear, protection class II, SELV output, flicker-free design, constant voltage, IP20 protection against overload, short circuit, overvoltage and temperature protection, EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc. for LED applications, 5-year guarantee
Number of outputs: 1
Number of inputs: 1
Output voltage min.: 24.0 V/DC
Output voltage max.: 24.0 V/DC
Output current min.: 0.5A
Max output current: 3.1A
Connections: screw terminals
Version: constant voltage
Type: clocked
Special features: furniture approval||dimmable||overload protection||overvoltage
Degree of protection: IP20
Protection class: II
Dimension, width: 60
Dimension, height: 31
Dimension, length: 185
Unit of dimensions: mm
Product weight: 306
Unit weight: g
Input Voltage Min: 198V/AC
Input Voltage Max: 264V/AC
Power: 75W
operating temperature max. in °C: 80 °C
operating temperature min. in °C: -30°C
