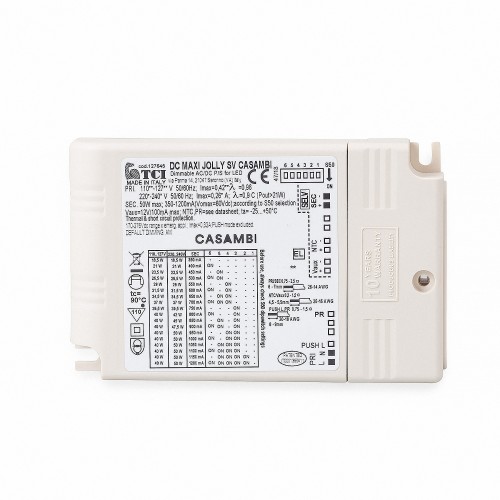

TCI DC MAXI JOLLY SV CASAMBI TO 50W 127645

TCI DC MAXI JOLLY SV CASAMBI TO 50W 127645

SKU: 14901
Category: Driver / Constant current
Manufacturers: TCI

102,39 €

incl. 19% VAT , plus (Standard)

Description

127645 - DC MAXI JOLLY SV CASAMBI

features

The special feature of this constant current driver:
In addition to the integrated CASAMBI radio receiver, this electronic ballast has amplitude dimming light.

nominal voltage
110...127V
220...240V
constant current (for POWER LEDs)
Current350mA220-240V=output power18.5W110-127V=18.5WCcurrent400mA220-240V=output power21W110-127V=21WCcurrent450mA220-240V=output power 23.5W110-127V=23.5WCcurrent500mA220 -240V = output power 26.5 W110-127 V = 26.5 WC current 550 mA 220-240 V = output power 29 W110-127 V = 29 WC current 600 mA 220-240 V = output power 31.5 W110-127 V = 31.5 WC current 650 mA 220-240 V = output power 34 .5 W110-127 V = 34.5 WC current 700 mA220-240 V = output power 37 W110-127 V = 37 WC current 750 mA220-240 V = output power 39.5 W110-127 V = 39.5 WC current 800 mA220-240 V = output power 42 W110-127 V=42 WC current850 mA220-240 V=output power45 W110-127 V=45 WCurrent900 mA220-240 V=output power47.5 W110-127 V=47.5 WC current950 mA220-240 V=output power50 W110-127 V=50 WCurrent1000mA220-240V=power output50 W110-127V=50 WCcurrent1050mA220-240V=power output50 W110-127V=50 WCcurrent1100mA220-240V=power output50 W110-127V=50 WCs trom1150mA220-240V=output power50W110-127V=50wc current1200mA220-240V=output power50W110-127V=50W
Constant voltage (for LEDs STRIP)
Dimming:
WIRELESS CASAMBI
PUSH (on the net)
SYNC/PWM INPUT
Additional technical features:
RIP FOR FREE
ACTIVE PFC (pf > 0.9)
SELV <60V
DIMMING: AMPLITUDE (AM) IEEE1789-2015 - Dim to Warm
WIDE RANGE INPUT VOLTAGE
4/5kV input protection
12V AUX. output
EXTERNAL NTC INPUT
plastic container:
ZHAGA AM3
square
IP 20 (independent use)
Minimum diameter of the recess:
84mm
